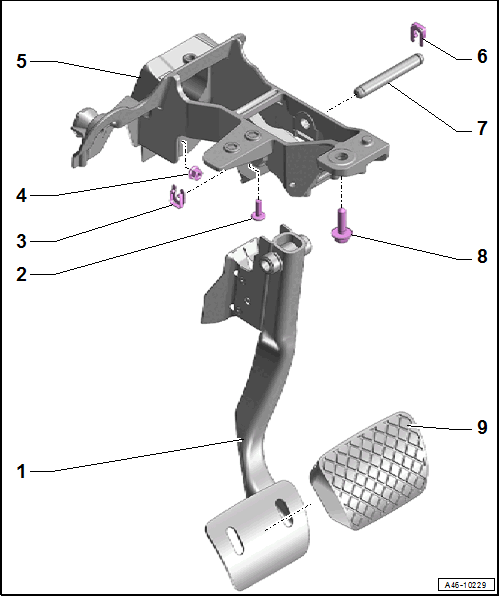

Overview - Brake Pedal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Brake Pedal
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- The path of the brake pedal must not be shortened by extra floor mats
- Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER
- Refer to BRAKE PEDAL, ATTACHING TO BRAKE BOOSTER
- Refer to BRAKE PEDAL, REMOVING AND INSTALLING
- Bolt
- 8 Nm
- Holds the mounting pin in place
- Clip
- Replace after removing
- Nut
- 8 Nm
- Mounting Bracket
- For foot pedal assembly
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Refer to MOUNTING BRACKET, REMOVING AND INSTALLING
- Clip
- Replace after removing
- Mounting Pin
- For brake pedal
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Bolt
- 20 Nm
- Pedal Rubber
