Mounting Bracket, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the brake pedal from the brake booster. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .

-- Remove the plenum chamber bulkhead. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .

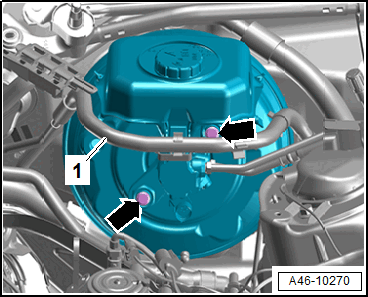

-- Remove the bolts -arrows- (shown for the vacuum brake booster).

Courtesy of AUDI

-- Remove the steering column from the instrument panel crossmember and set it aside. Refer to STEERING COLUMN, REMOVING AND INSTALLING .

Courtesy of AUDI

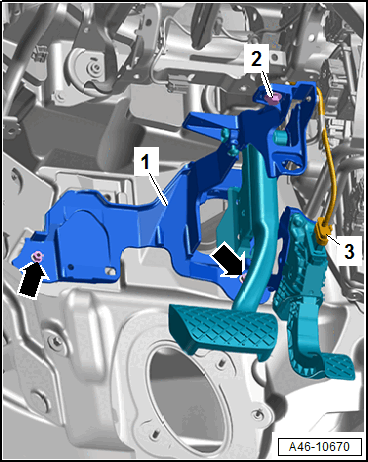

-- Disconnect the connector -3- and free up the wire.

-- Remove the bolt -2- and nuts -arrows-, then remove the mounting bracket -1- with the brake pedal and accelerator pedal module installed.

-- Remove the brake pedal. Refer to BRAKE PEDAL, REMOVING AND INSTALLING .

-- Remove the accelerator pedal module. Refer to ACCELERATOR MECHANISM .
