Brake Pedal, Removing And Installing, RHD Vehicle: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the brake pedal from the brake booster. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .
-- Remove the plenum chamber bulkhead. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .
-- Remove the bolts -arrows- (shown for the vacuum brake booster).
-- Remove the right A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

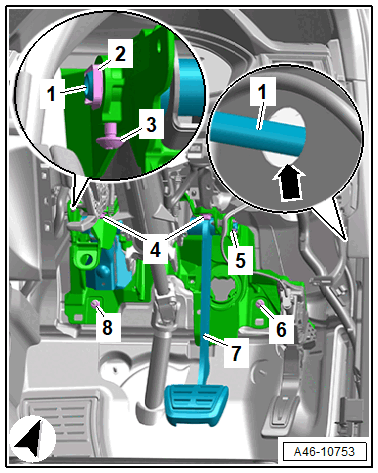

-- Remove the bolts -4-.
-- Loosen the bolt -3-, remove the clamp -2- and -5-.
-- Remove the nuts -6 and 8-.
-- Remove the mounting pin -1- to the right opening -arrow- and remove the brake pedal -7-, at the same time align the mounting bracket correspondingly.
