Rear Noise Insulation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Removal Procedure:

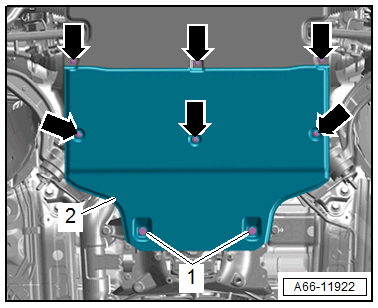

-- Remove the quick-release fasteners -arrows- from the wheel housing liner connection and the noise insulation.
-- Remove the expanding rivets -1-.
-- Remove the rear noise insulation -2-.
Installation Procedure:
Install in reverse order of removal.
NOTE:
When installing, the quick-release fasteners must noticeably engage!
