Front Noise Insulation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure:

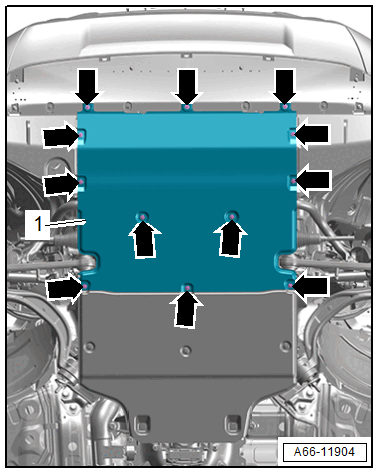

-- Remove the quick-release fasteners -arrows-.

-- Pull out and remove the noise insulation -1- toward the rear from the bumper cover lower section.

Courtesy of AUDI OF AMERICA, LLC

Installation Procedure:

Installation procedures occur in reverse order.

NOTE:

When installing, the quick-release fasteners must noticeably engage!

For vehicles with an auxiliary heater, the exhaust pipe opening must run vertically through the grommet in the noise insulation.

Fig 1: Ensure Exhaust Pipe Is Installed Correctly Inside Noise Insulation

Courtesy of AUDI OF AMERICA, LLC
