6-Cylinder Diesel Engine 3.0L TDI
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Removal Procedure:

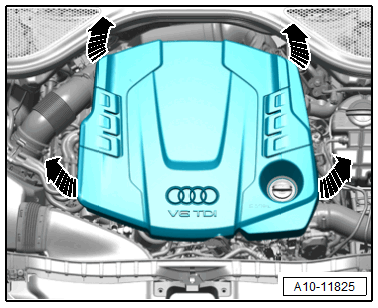

-- Carefully pull the engine cover off of the retaining pins -arrows- one after the other. Do not pull on the engine cover abruptly to remove it or pull on one side.
Installation Procedure:
-- To avoid damage, do not hit the engine cover with fist or a tool.
-- Be careful when attaching the engine cover onto the oil filler tube.
-- Using both hands, first press the engine cover in the rear onto the pins, and then, using both hands, press the engine cover in the front into the pin.
