4-Cylinder Diesel Engine 2.0L TDI

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure:

-- Carefully pull the engine cover off of the retaining pins -arrows- one after the other.

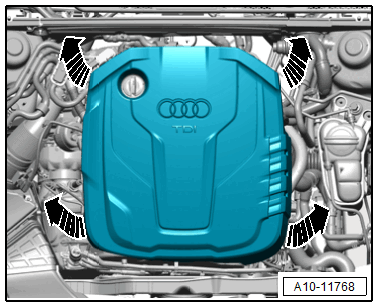

Fig 1: Engine Cover 2.0L TDI
GWWA10-11768Courtesy of AUDI OF AMERICA, LLC

Installation Procedure:

-- Position the engine cover on the retaining pins and press onto the retaining pins by hand one after the other.
