Windshield Spray Nozzles, Adjusting
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Procedure:

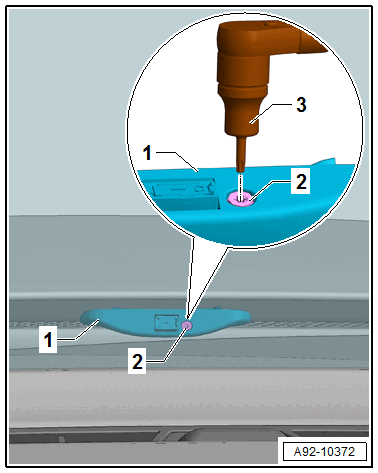

-- Align the adjusted nozzles tips over the adjusting screw -2- according to the specification using a tool with an external TORX® size 9 -3-.
-- If the spray pattern still does not meet the specifications, clean the corresponding spray nozzles. Refer to WASHER NOZZLES, ADJUSTING .
NOTE:
The water jets of a nozzle unit can only be adjusted together and the height is adjusted via an adjusting screw. It is not possible to adjust the water jets individually or to adjust just one side.
