Rear Window Spray Pattern, Checking
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

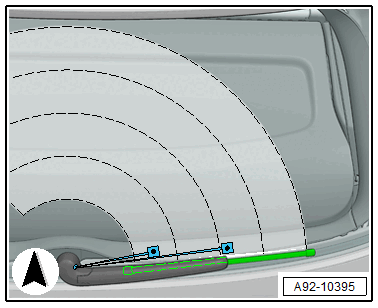

The spray pattern must meet the following specifications:
- Both points of impact are just above the wiper blades
- Even, precise spray jets
- The point of impact of the inner spray jet is within approximately the first quarter of the length of the wiper blade -image-.
- The point of impact of the outer spray jet is approximately in the middle of the length of the wiper blade or just above -image- (third quarter).
Procedure:
-- Activate the rear window washer system and assess the spray pattern.
-- If the spray pattern does not meet the specifications, adjust the spray nozzles. Refer to REAR WINDOW SPRAY NOZZLES, ADJUSTING .
