Connected Gateway, Replacing Emergency Battery: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition and all electrical equipment and remove the ignition key.
-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
The Data Bus on Board Diagnostic Interface -J533- must not be removed.

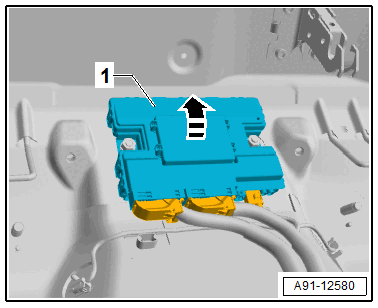

-- Release the retainers and remove the cover upward from the Data Bus on Board Diagnostic Interface -J533- -1- in the -direction of the arrow-.
-- Pivot the Telematics Emergency Battery -- -1- out of the Data Bus on Board Diagnostic Interface -J533-.
-- Release and disconnect the connector.
