Active Steering Control Module -J792-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the footrest. Refer to FOOTREST, REMOVING AND INSTALLING .
-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Free up the left front carpet and lift up slightly.

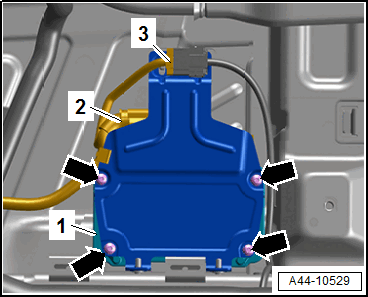

-- Remove the bolts -arrows-.
-- Pull the Active Steering Control Module -J792- out slightly and disconnect the connectors -2 and 3-.
-- Remove the control module.
