Sunroof Frame, Removing And Installing: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

To complete the procedure, a second technician is required to be at the following position SUNROOF FRAME, REMOVING AND INSTALLING .

CAUTION:

This procedure contains mandatory replaceable parts. Refer to component overview and parts information prior to starting procedure.

Mandatory Replacement Parts

Sunroof Frame Foam Seal

Removing

-- Remove the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

-- Disconnect the connector -1- from the Power Sunroof Control Module -J245-.

Courtesy of AUDI

-- Remove the front and rear water drain hoses from the sunroof frame. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING .

Before removing the nuts, both technicians must hold the sunroof frame at the front and back.

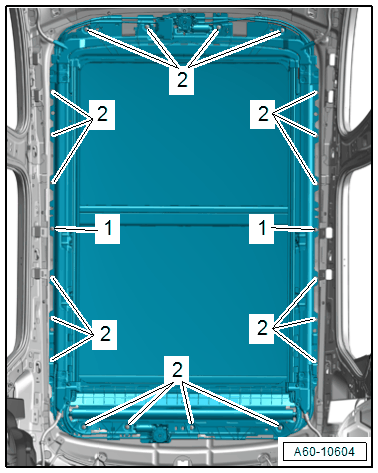

-- Remove all nuts -2-.

Courtesy of AUDI

-- Remove the nuts -1- and the sunroof frame to the rear lid.
