Sill Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bench seat / bucket seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
-- Free up in the sill panel in the area of the inner door seal.

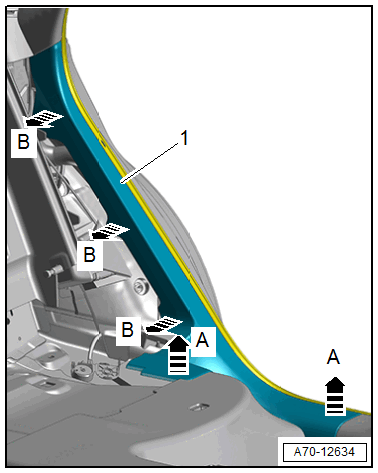

-- Starting at the front, unclip the sill panel -1- from the side sill and the side panel using the Trim Removal Wedge :3409 -arrow A- and -arrow B-.
-- Pull the sill panel downward off the C-pillar trim panel and remove it.
