Overview - Sill Panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

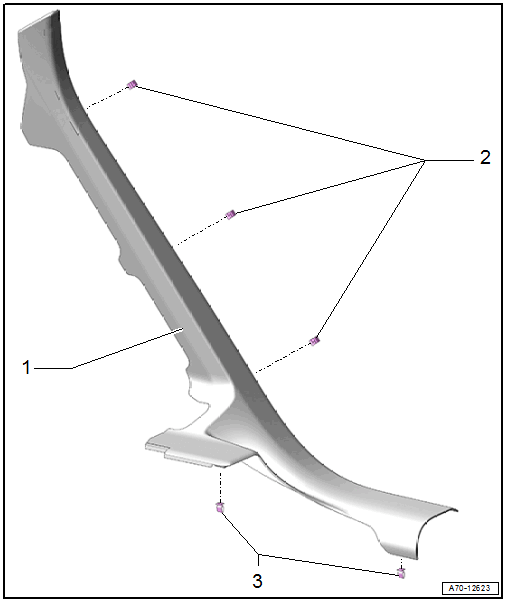

- Sill Panel
- Refer to SILL PANEL, REMOVING AND INSTALLING
- Stretch the inner door seal lip over.
- Clips
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the sill panel.
- Replace damaged or deformed clips
- Clips
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the sill panel.
- Replace damaged or deformed clips
