Overview - Footrest And Carpet

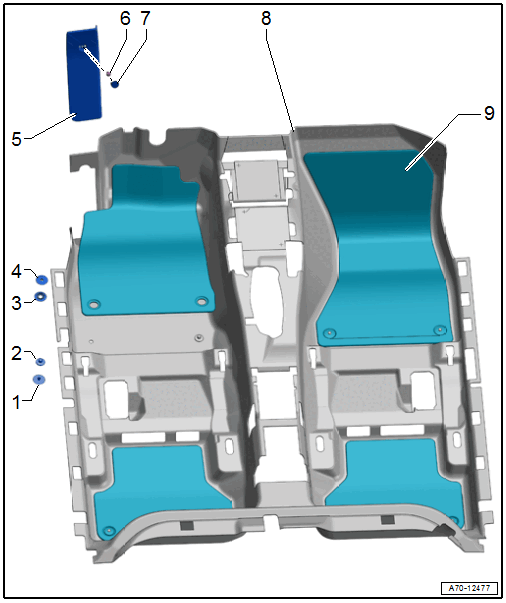

Fig 1: Overview - Footrest And Carpet

Courtesy of AUDI OF AMERICA, LLC

1. Bracket for Floor Mat
   • Quantity: 2
   • Insert from below into the carpet
2. Floor Mat Cap
   • Quantity: 2
   • Unclip using the Pry Lever :80-200
   • Press into the bracket until it clicks into place
3. Bracket for Floor Mat
   • Quantity: 2
   • Insert from below into the floor mat
4. Floor Mat Cap
   • Quantity: 2
   • Unclip using the Pry Lever :80-200
   • Press into the bracket until it clicks into place
5. Footrest
   • LHD: engage in the relay and fuse panel
   • RHD. Refer to Fig 2.
   • Refer to FOOTREST, REMOVING AND INSTALLING
6. Bolt
   • 3 Nm
7. Cap
   • Press on until it engages audibly
8. Carpet
   • One piece
   • Refer to CARPET, REMOVING AND INSTALLING
9. Floor Mat
   • Quantity: 4

Overview - Footrest, RHD

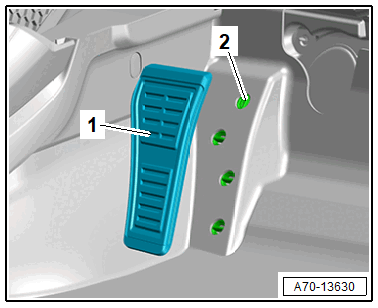

Fig 2: Overview - Footrest, RHD

Courtesy of AUDI OF AMERICA, LLC

1. Footrest
2. Footrest Bracket

• If the support bars are broken the carpet must be replaced. Refer to CARPET, REMOVING AND INSTALLING .
