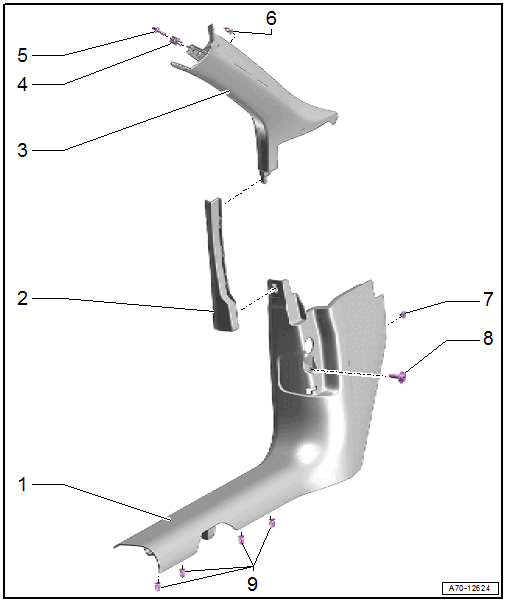

Overview - A-Pillar Trim Panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- A-Pillar Lower Trim Panel
- Front passenger side RHD. Refer to Fig 2.
- Install in the front in the carpet or the relay and fuse panel
- Stretch the inner door seal lip over.
- Refer to LOWER A-PILLAR TRIM PANEL, REMOVING AND INSTALLING
- A-Pillar Gap Cover
- Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING
- Clip into the A-pillar trim panels
- Stretch the inner door seal lip over.
- A-Pillar Upper Trim Panel
- Refer to UPPER A-PILLAR TRIM PANEL, REMOVING AND INSTALLING
- Stretch the inner door seal lip over.
- Clamp with Hooks
- Replace after removing the A-pillar trim panel
- Retaining Pin
- 3.5 Nm
- Clip
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Replace damaged or deformed clips
- Clip
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Replace damaged or deformed clips
- Bolt
- Only driver side
- 2.5 Nm
- Clips
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the sill panel strip.
- Replace damaged or deformed clips

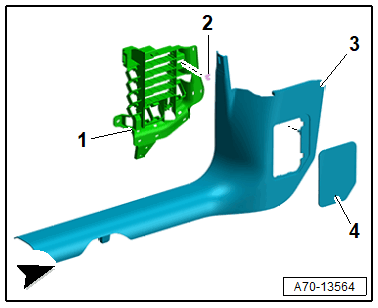

Overview - A-Pillar Lower Trim Panel, Front Passenger Side RHD
- Relay and Fuse Panel 1 -SR1-
- Clip
- Replace any damaged or deformed clips
3 - Front Passenger Side A-Pillar Trim Panel
4 - Fuse Panel Cover
