D-Pillar Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Fold the rear seat backrests forward.

-- Unclip the cover -1- using the Trim Removal Wedge :3409 -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- If installed, remove the luggage compartment roll cover.

-- Remove the bench seat / bucket seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .

-- Pull the backrest release lever.

Courtesy of AUDI OF AMERICA, LLC

-- Pry off the cap -1- with a screwdriver.

-- Remove the bolt -arrow- behind it.

-- Free up the luggage compartment side trim panel -1- near the rear lid seal.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the top of the luggage compartment side trim panel from the body and the trim panels -arrows-.

-- Pull the top of the luggage compartment side trim panel as far inward as possible.

-- If necessary, disconnect the connectors and free up the release cable for the remote backrest release.

-- Unclip the front of the side cover -1- using the Trim Removal Wedge :3409 -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Detach the side cover from the D-pillar trim panel -arrow B- and remove it.

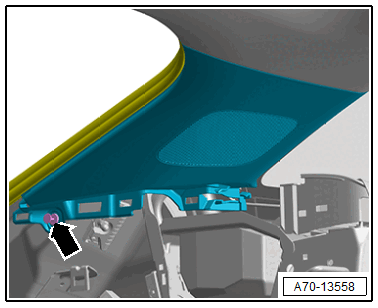

-- Remove the expanding rivet -arrow- with the Pliers :T40172C (installed depending on the model).

Courtesy of AUDI OF AMERICA, LLC

-- Free up the D-pillar trim panel in the rear lid seal area.

Courtesy of AUDI OF AMERICA, LLC

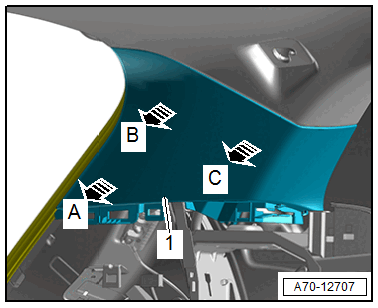

-- Unclip the D-pillar trim panel -1- from the D-pillar -arrow A- through -arrow C- using the Pry Lever :80-200 .

-- Remove the D-pillar trim panel downward from the headliner.

-- If installed, disconnect the midrange speaker connector.

Bracket, removing

-- Unclip the wiring harness.

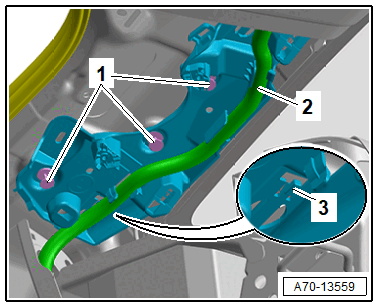

-- If installed, disengage the water drain hose -2- from the bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expanding rivet -1- using the Pliers :T40172C .

-- Release the tab -3- with a small screwdriver and pull the bracket upward out of the mounts.

-- Carefully pull down the headliner slightly and remove the bracket.
