Carpet, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front seats. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Remove the footwell cover on the driver side. Refer to DRIVER SIDE FOOTWELL COVER, REMOVING AND INSTALLING .

-- Remove the footrest. Refer to FOOTREST, REMOVING AND INSTALLING .

-- Remove the A-pillar lower trim panels. Refer to LOWER A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the bench seat / bucket seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the sill panels. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Remove the B-pillar lower trim panels. Refer to B-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the nuts -1- and -3- and remove the retaining bracket.

GWWA37-11354Courtesy of AUDI OF AMERICA, LLC

-- If installed, remove the air duct for the rear vent.

-- Remove the floor mats.

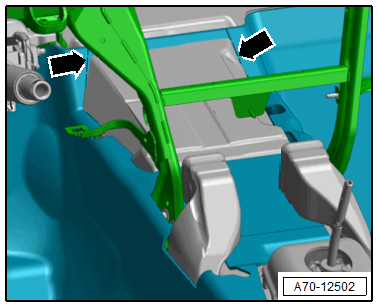

GWWA70-12502Courtesy of AUDI OF AMERICA, LLC

-- If necessary, free up the carpet at the front of the center tunnel -arrows- and in the instrument panel crossmember area.

-- Lift the rear carpet -1- and pull it toward the rear -arrows-.

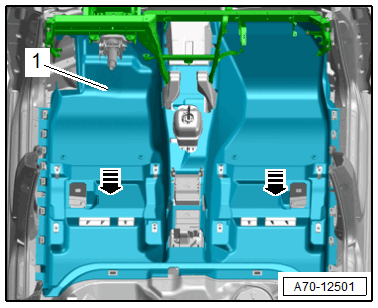

GWWA70-12501Courtesy of AUDI OF AMERICA, LLC

-- Fold and remove the carpet in the center.

NOTE:

Make sure the carpet does not tear at the openings.
