C-Pillar Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bench seat / bucket seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .

-- Remove the side cover. Refer to SIDE COVER, REMOVING AND INSTALLING .

-- Remove the rear outer belt guide. Refer to OUTER REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .

-- Free up the C-pillar trim panel -1- near the door seal and disengage it at the front of the C-pillar.

Courtesy of AUDI OF AMERICA, LLC

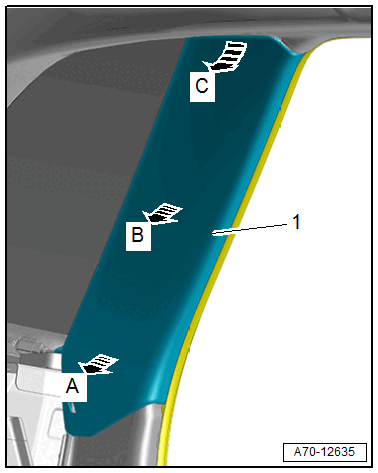

-- Unclip the C-pillar trim panel from the C-pillar -arrow A- and -arrow B- using the Pry Lever :80-200 .

-- Remove the upper C-pillar trim from the mount on the body -arrow C- by moving the trim toward the inside and pulling it downward at the same time.
