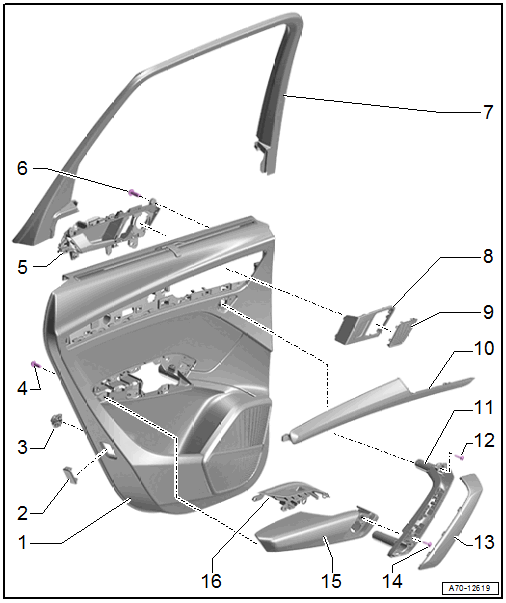

Overview - Rear Door Trim Panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Door Trim Panel
- Rest of world version shown
- Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING
- Exit Warning Reflector
- Clip
- Quantity: 8
- Bolt
- Quantity: 14
- 1.2 Nm
- Interior Door Mechanism
- Bolt
- Quantity: 6
- 1.2 Nm
- Window Frame Trim Panel
- Button Trim
- Speaker Trim
- For the treble speaker
- Decorative Trim
- Pull Handle
- Bolt
- Quantity: 4
- 2.5 Nm
- Pull Handle Trim
- Bolt
- 1.2 Nm
- Rear Armrest
- Button Trim
