Outer Speaker Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Outer Speaker Trim

Courtesy of AUDI OF AMERICA, LLC

-- Using the Wedge Set :T10383/1 , carefully detach the speaker trim -1- along the seam -arrow- by inserting the wedge approximately 2 mm into the seam under the speaker trim.

-- Release the remaining retainers for the speaker trim and remove it.

Speaker Trim Mount, Removing

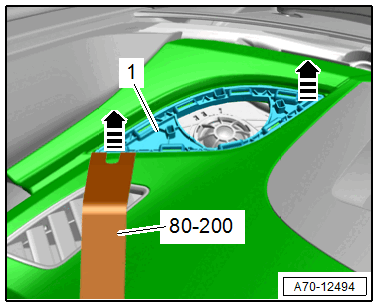

-- Carefully pry out the speaker mount -1- using the Pry Lever :80-200 -arrows-.

Fig 2: Speaker Mount

Courtesy of AUDI OF AMERICA, LLC

-- To do so, push the Trim Removal Wedge :3409 under the mount if necessary and carefully release the retaining pins.
