Side Defroster Vent, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Unclip the defroster vent -1- using the Trim Removal Wedge :3409  -arrow-.

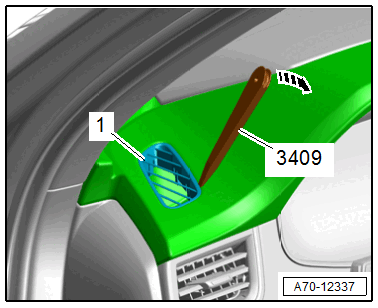

Fig 1: Side Defroster Vent
GWWA70-12337Courtesy of AUDI OF AMERICA, LLC

-- Disengage the remaining retainers and remove the defroster vent.
