Outer Instrument Panel Vent, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Remove the instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Remove the driver side instrument panel decorative trim. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .

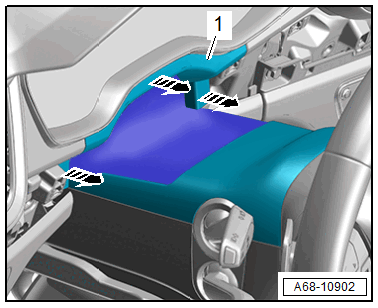

-- Using the Trim Removal Wedge :3409 , unclip the instrument cluster gap cover -1- from the instrument panel vent -arrows-.

Courtesy of AUDI OF AMERICA, LLC

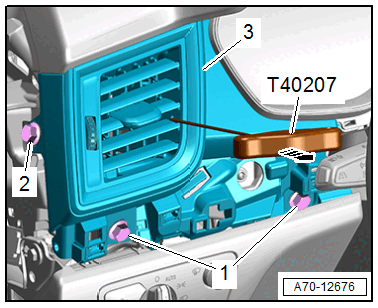

-- Remove the bolts -1- and -2-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The vent has a hole on both sides for attaching the Hook Tool :T40207 .

-- Carefully insert the Hook Tool :T40207 between the slats and hook it into the side of the vent.

-- Alternating between both sides, carefully remove the vent -3- from the installation opening -arrow-.

-- Remove the instrument panel vent carefully and disconnect the connectors.
