Front Center Defroster Vent, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

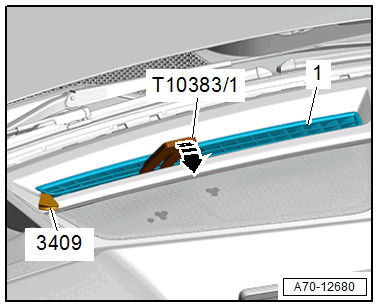

-- Use the Trim Removal Wedge :3409 and Wedge Set :T10383/1 to carefully pry the defroster vent -1- out of the instrument panel -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Carefully unlatch the remaining tabs and remove the defroster vent upward.
