Display Control Head Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far up and backward as possible to be able to use the entire steering column adjustment range.

-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the front passenger side decorative trim for the instrument panel. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

-- Remove the front storage compartment in the center console. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the switch module in instrument panel, center. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Remove the lamp for the instrument panel center storage compartment. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL LAMPS .

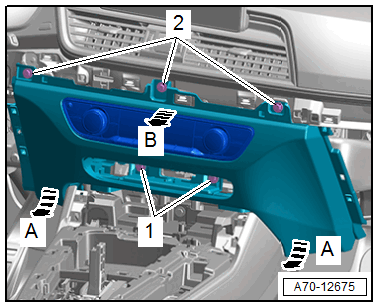

-- Remove the bolts -1- and -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the lower side trim on the crossmember -A arrows-.

-- Remove the trim with the A/C display control head toward the rear from the instrument panel -arrow B-.

-- Disconnect the connectors and remove the trim with the A/C display control head upward.
