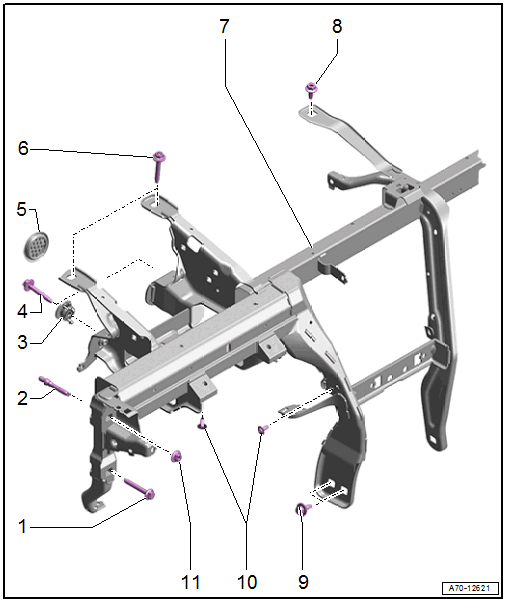

Overview - Instrument Panel CROSSMEMBER
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 2
- 20 Nm
- The mounting threads and contact surface must be free of paint, coating and corrosion. The threaded connection serves as the ground connection.
- Threaded Pin
- Quantity: 2
- 20 Nm
- Lifter
- Quantity: 2
- Check the lifter adjusting nut for ease of movement
- Turn the adjusting nut all the way downward until the adjuster engages in the transportation safeguard
- Bolt
- Quantity: 2
- 20 Nm
- Plug
- Quantity: 2
- Bolt
- Quantity: 2
- 20 Nm
- Instrument Panel Crossmember
- Bolt
- 20 Nm
- Bolt
- Quantity: 3
- 20 Nm
- Bolt
- For A/C unit
- Quantity: 5
- 3.6 Nm
- Nut
- Quantity: 2
- Replace after removing
- 20 Nm
