Window Frame Trim Panel, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

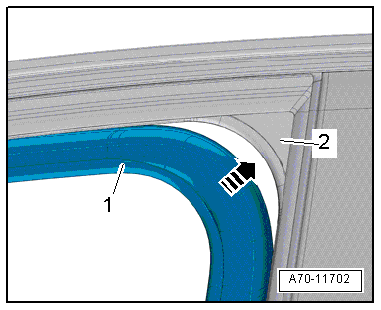

-- Insert window frame trim panel -1- at the top back of the window guide -2- -arrow-.
-- Install window frame trim panel -2- along the entire length of the window guide.
-- Remove the protective film from the adhesive pads on the new part.
-- Push the trim panel firmly against the door in the adhesive pad area -1- and -3-.
