Pull Handle Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

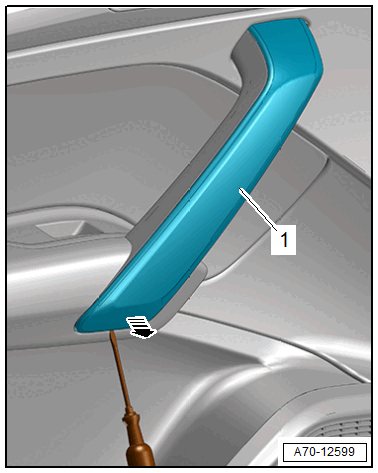

-- Unclip the trim -1- carefully from the pull handle with a small flat-head screwdriver at the position shown -arrow-.

GWWA70-12599Courtesy of AUDI OF AMERICA, LLC

-- Disengage the remaining tabs with the Trim Removal Wedge :3409  and remove the trim.
