Overview - Front Door Trim Panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

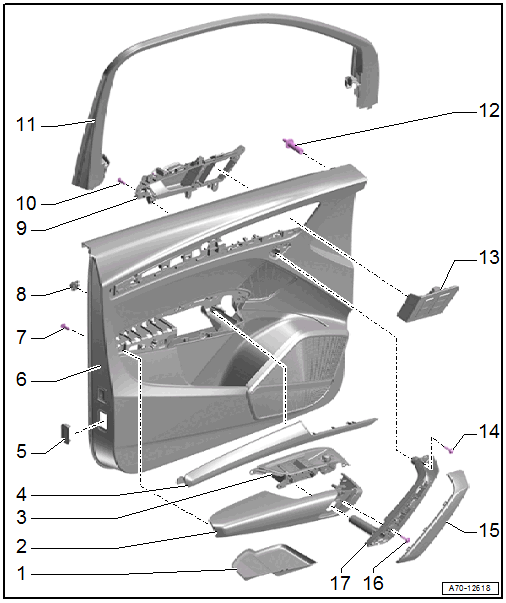

Fig 1: Exploded View Of Front Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Door Pocket Trim
- Insert into the door
Front Armrest
- Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING
Button Trim
- Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING
Decorative Trim
- Refer to DECORATIVE TRIM, REMOVING AND INSTALLING
Exit Warning Reflector
Door Trim Panel
- Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING
- Driver door: when replacing the door trim panel, the sleeve hole for the Central Locking -Safe- Indicator Lamp -K133- must be incorporated later according to the design of the previous door trim panel
Bolt
- Quantity: 15
- 1.2 Nm
Clip
- Quantity: 8
Interior Door Mechanism
- Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING
Bolt
- Quantity: 6
- 1.2 Nm
Window Frame Trim Panel
- Refer to WINDOW FRAME TRIM PANEL, REMOVING AND INSTALLING
Door Trim Panel Stopper
- 4.5 Nm
Button Trim
Bolt
- Quantity: 4
- 2.5 Nm
Pull Handle Trim
- Refer to PULL HANDLE TRIM, REMOVING AND INSTALLING
Bolt
- 1.2 Nm
Pull Handle
- Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING
