Front Pull Handle, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Place the door trim panel on a soft surface.

-- Disconnect the connectors for the switch at the back of the door trim panel.

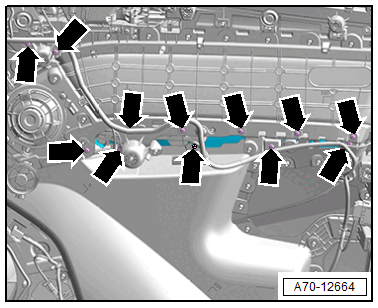

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the pull handle with the armrest and button trim from the door trim panel.

Disconnect the armrest, pull handle and button trim from each other

-- Driver side: remove the mirror adjusting switch. Refer to MIRROR ADJUSTING SWITCH -E43- /FOLDING MIRROR ADJUSTMENT SWITCH -E168-, REMOVING AND INSTALLING .

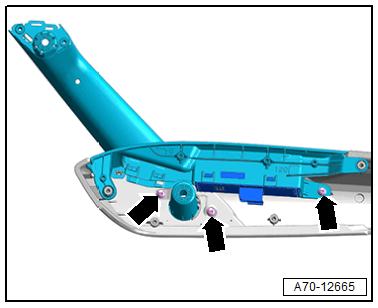

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

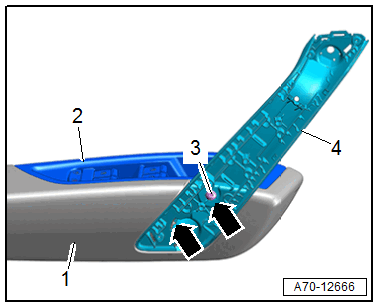

-- Remove the bolt -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows- with a screwdriver, and unclip the pull handle -4- from the trim and the armrest at the same time.

-- Detach and remove the trim -2- from the armrest -1-.
