Sunroof Shade, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the sunroof shade all the way to the rear.
-- Remove the sunroof frame. Refer to SUNROOF FRAME, REMOVING AND INSTALLING .
-- Remove the rear glass panel. Refer to GLASS PANEL, REMOVING AND INSTALLING, REAR .

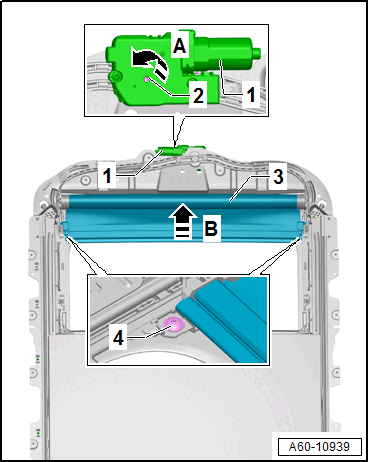

-- Turn the adjusting screw -2- on the Sunroof Shade Motor - V260- -item 1- counter-clockwise -arrow A- until the sunroof shade -3- has reached its stop -arrow B-.
-- Remove the bolt -4- on the left and right.

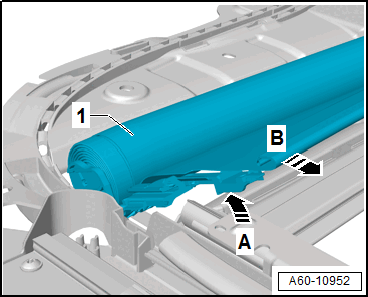

-- Lift the sunroof shade -1- at the front -arrow A- and remove toward the front -arrow B-.
