Sunroof Motor -V1-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Sliding sunroof glass panel (front) is closed.
-- Switch off the ignition.
-- Remove the front interior lamp/reading lamp. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

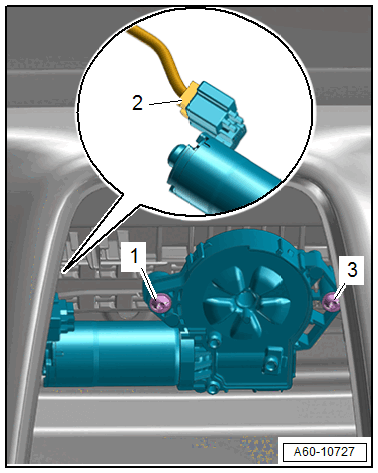

-- Remove the bolts -1 and 3-.
-- Remove the Sunroof Motor - V1-.
-- Release and disconnect the connector -2-.
