Sunroof Control Module -J245-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headliner and place on the seats. Refer to HEADLINER, REMOVING AND INSTALLING .

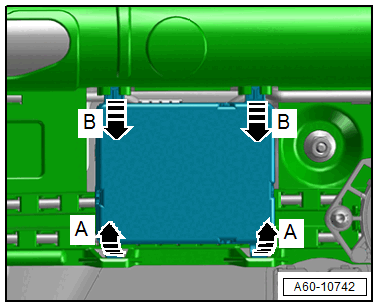

-- Release the frame -A arrows- and pivot the Power Sunroof Control Module -J245- downward and disengage from the mount -B arrows-.

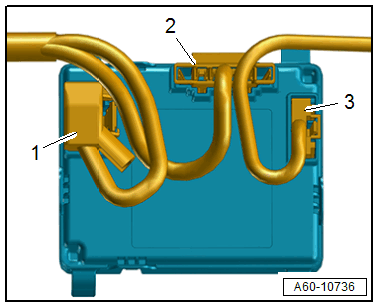

-- Release and disconnect the connectors -1, 2 and 3- on the Sunroof Control Module -J245-.
