Adjustment Dimensions
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of AUDI
|

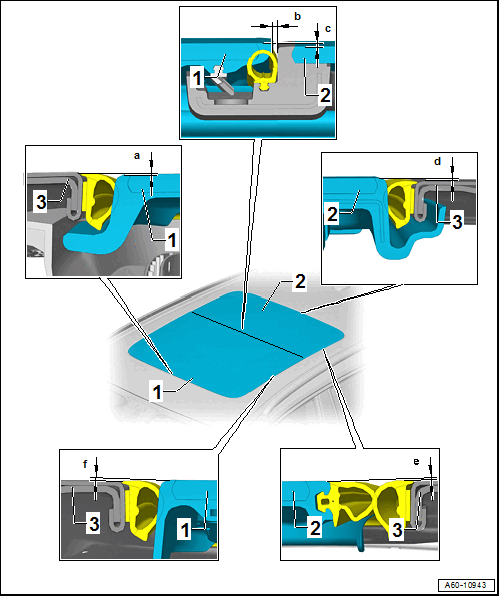

- Front Glass Panel
- Dimension -a- = 1.0 mm
- Dimension -b- = 1.2 mm
- Dimension -c- = 1.0 mm
- Dimension -f- = 0.3 mm
- Rear Glass Panel
- Dimension -b- = 1.2 mm
- Dimension -c- = 1.0 mm
- Dimension -d- = 0.9 mm
- Dimension -e- = 0.7 mm
- Roof
