Rear Lid Tail Lamp, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn the light switch off.
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
-- Position a narrow screwdriver -3- at the opening and remove the cover -1- from the tail lamp -2- -arrow-.
-- Use fingers to grab behind the cover -1- and release the center and upper tab.
-- Tilt the cover -1- on the front edge inward -arrow- and pull out of the lamp.

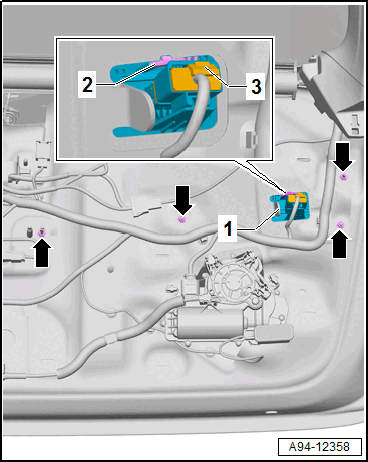

-- Remove the tail lamp nuts on both sides -arrows-.
-- Release and disconnect the connector -3-.
-- Release the retainer -2- and remove the tail lamp -1-.
