Rear Fog Lamps, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Removing

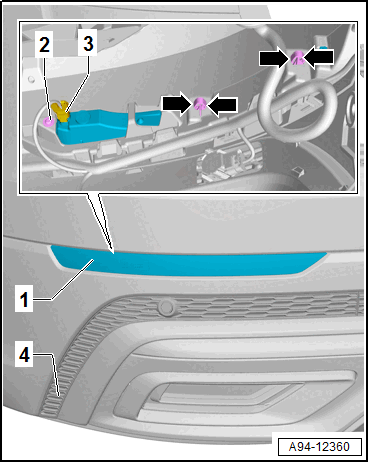

-- Release and disconnect the connector -3-.
-- Remove the bolt -2-.
-- Release the retainers -arrows-.
-- Push the rear fog lamp -1- out of the bumper cover -4-.
