Overview - Rear Lid Tail Lamps

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

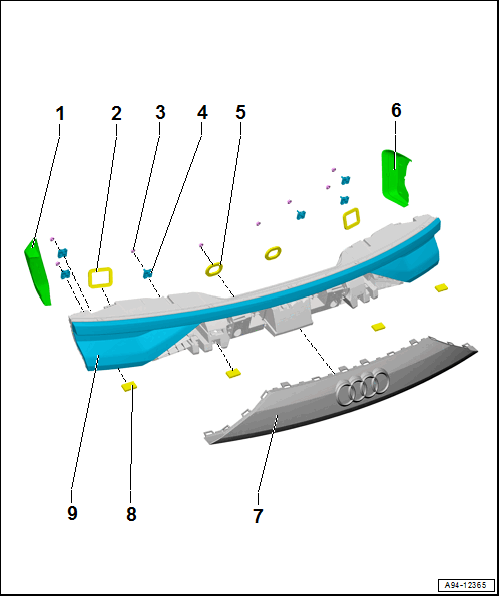

Fig 1: Exploded View Of Rear Lid Tail Lamps

Courtesy of AUDI

Cover
- For the tail lamp
- Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
Seal
- Replace if damaged
Nut
- Quantity: 8
- Tightening specification and sequence. Refer to Fig 2.
Adjusting Element
- Quantity: 6
Seal
- Replace if damaged
Cover
- For the tail lamp
- Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
Rear Lid Trim Molding
- Removing and Installing. Refer to DECORATIVE TRIM, REMOVING AND INSTALLING .
Seal
- Replace if damaged
Center Tail Lamp -MX13-
- In the rear lid
- Replace the entire tail lamp if any LED is faulty
- Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
- Rear Lid Tail Lamp, Aligning with Body Contour. Refer to REAR LID TAIL LAMP, ALIGNING WITH BODY CONTOUR .

Tightening specification and sequence for the tail lamps

Fig 2: Tail Lamp Tightening Sequence

Courtesy of AUDI

-- Tighten the bolts in steps in the sequence shown:

Step	Bolts	Tightening Specification
1.	-1 to 8-	Install all the way by hand
2.	-1 to 8-	4 Nm
