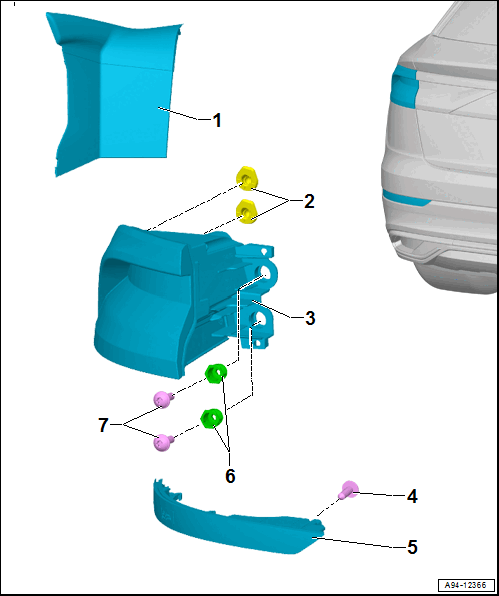

Overview - Body Tail Lamps
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Cover
- For the tail lamp
- Removing and installing. Refer to LOWER TAIL LAMP, REMOVING AND INSTALLING .
- Clip Nut
- Quantity: 2
- Tail Lamp
- Left Tail Lamp -MX3-
- Right Tail Lamp -MX4-
- Replace the entire tail lamp if any LED is faulty
- Removing and installing. Refer to LOWER TAIL LAMP, REMOVING AND INSTALLING .
- Align the body tail lamp to the body contour. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR .
- Bolt
- 4 Nm
- Rear Fog Lamp
- Left Rear Fog Lamp Bulb -L46-
- Right Rear Fog Lamp Bulb -L47-
- If any LED is faulty, the rear fog lamp bulb must be completely replaced.
- Removing and installing. Refer to REAR FOG LAMPS, REMOVING AND INSTALLING .
- Adjusting Nut
- Quantity: 2
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR .
- Bolt
- Quantity: 2
- 4 Nm
