Lower Tail Lamp, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn the light switch off.

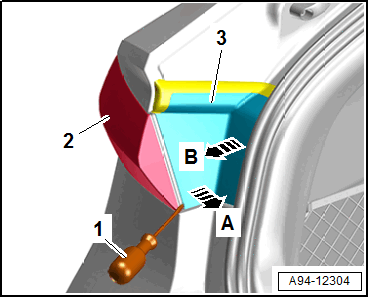

-- Position the screwdriver -1- on the opening and release the lower catch -arrow A-.
-- Grip between the cover -3- and the tail lamp -2- and release the remaining catches.
-- Remove the cover from the tail lamp -arrow B-.
Tip:
The cover must be removed very carefully so that the guide and the hooks do not get damaged.

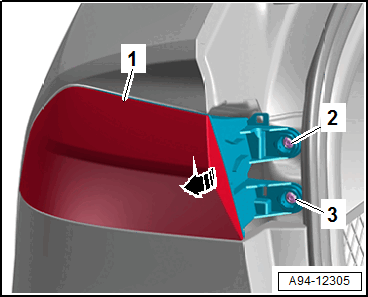

-- Remove the bolts -2 and 3-.
-- Pivot the tail lamp -1- toward the outside -arrow- ; this detaches the tail lamp from the clip nut.
-- Release and disconnect the connector.
