Steering Column Switch Module, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the steering wheel. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
-- Remove the steering column trim panels. Refer to OVERVIEW - STEERING COLUMN .

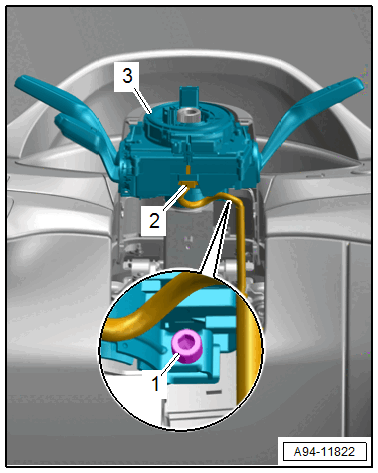

-- Remove the bolt -1-.
-- Release and disconnect the connector -2-.
-- Remove the steering column switch module -3-.
