Overview - Entry Lamp

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

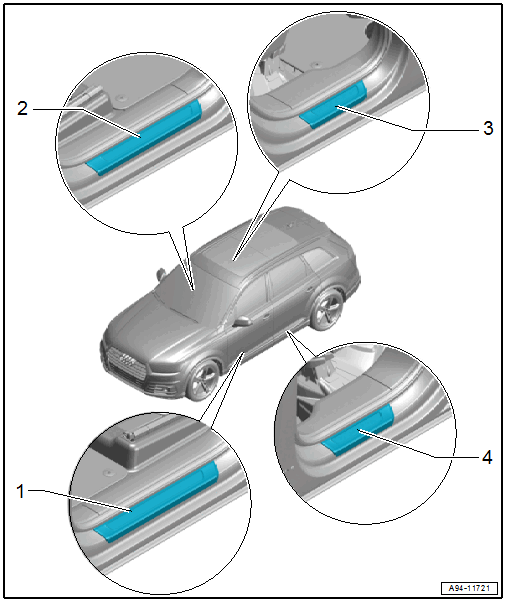

Fig 1: Entry Lamps

Courtesy of AUDI

Driver Side Sill Panel Strip Ambient Lighting Lamp -W102-
- Integrated in the sill panel
- Cannot be replaced separately
- Replace the sill panel if damaged. Refer to SILL PANEL, REMOVING AND INSTALLING .
Front Passenger Side Sill Panel Strip Ambient Lighting Lamp -W103-
- Integrated in the sill panel
- Cannot be replaced separately
- Replace the sill panel if damaged. Refer to SILL PANEL, REMOVING AND INSTALLING .
Front Passenger Side Rear Side Sill Panel Strip Ambient Lighting Lamp -W104-
- Integrated in the sill panel
- Cannot be replaced separately
- Replace the sill panel if damaged. Refer to SILL PANEL, REMOVING AND INSTALLING .
Driver Side Rear Side Sill Panel Strip Ambient Lighting Lamp -W105-
- Integrated in the sill panel
- Cannot be replaced separately
- Replace the sill panel if damaged. Refer to SILL PANEL, REMOVING AND INSTALLING .
