Right And Left Led Headlamp Power Output Module 1 -A27- / -A31-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition and all electrical equipment. Place the ignition key outside of the vehicle.
-- Turn the light switch off.
-- Remove the front wheel housing liner. Refer to WHEEL HOUSING LINER .

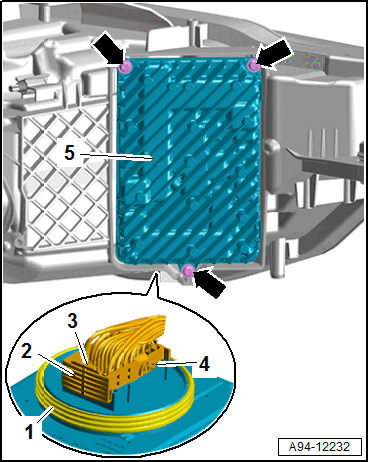

-- Remove the bolts -arrows-.
-- Remove the power output module -5-.
-- Disconnect the connector -4- by pressing the locking mechanism -3-, tilting the retaining bracket -2- upward, and removing the connector.
