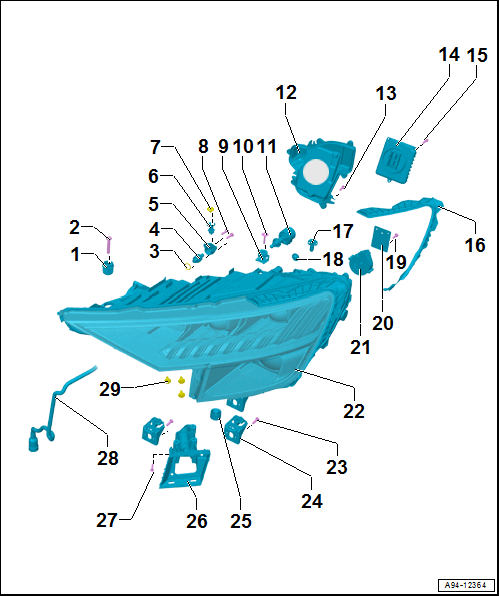

Overview - Headlamps, Matrix Led Headlamps
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Adjusting Nut
- For the headlamp height adjustment
- Bolt
- 4.5 Nm
- Seal
- Component: horizontal setting repair kit. Refer to the appropriate Electronic Parts Information
- Gear Shaft
- Component: horizontal setting repair kit. Refer to the appropriate Electronic Parts Information
- Cap
- Component: horizontal setting repair kit. Refer to the appropriate Electronic Parts Information
- Adjusting Screw
- Component: horizontal setting repair kit. Refer to the appropriate Electronic Parts Information
- Plug
- Market-Specific Version
- Bolt
- Component: horizontal setting repair kit. Refer to the appropriate Electronic Parts Information
- Quantity: 2
- 1.5 Nm
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Bolt
- 4.5 Nm
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT AND RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING .
- Housing Cover
- Bolt
- Quantity: 6
- 1.5 Nm
- LED Headlamp Power Output Module 1
- Right LED Headlamp Power Output Module 1 -A27-
- Left LED Headlamp Power Output Module 1 -A31-
- Removing and installing. Refer to RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 -A27- / -A31-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 1.5 Nm
- Sealing Frame
- Removing and installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
- Height Adjustment Screw
- With gasket
- Grommet
- Bolt
- 1.5 Nm
- Daytime Running Lamp and Position Lamp LED Module
- For North American Region only
- Left Daytime Running Lamp and Position Lamp LED Module -L176-
- Right Daytime Running Lamp and Position Lamp LED Module -L177-
- Removing and installing. Refer to LEFT AND RIGHT DAYTIME RUNNING LAMP AND POSITION LAMP LED MODULE -L176- / -L177-, REMOVING AND INSTALLING, MATRIX/LASER LED HEADLAMPS .
- Headlamp Fan
- Left Headlamp Fan -V407-
- Right Headlamp Fan -V408-
- Removing and installing. Refer to HEADLAMP FAN, REMOVING AND INSTALLING .
- Headlamps
- Left Front Headlamp -MX1-
- Right Front Headlamp -MX2-
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Adjusting. Refer to HEADLAMP, ADJUSTING .
- Bolt
- Quantity: 2
- 4.5 Nm
- Headlamp Housing Bracket
- Quantity: 2
- Removing and installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Filter Membrane
- Removing and installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING .
- Bracket
- For the headlamp washer system spray nozzle
- Bolt
- Component: washer nozzle bracket repair kit. Refer to the appropriate Electronic Parts Information
- Quantity: 3
- 1.5 Nm
- Breather Hose
- For the headlamp housing
- Plug
- Quantity: 3
- Component: washer nozzle bracket repair kit. Refer to the appropriate Electronic Parts Information
