Left And Right Headlamp Beam Adjustment Motor -V48- / -V49-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition and all electrical equipment. Place the ignition key outside of the vehicle.

-- Turn the light switch off.

-- Do not operate the flashers.

-- Remove the front wheel housing liner front section. Refer to WHEEL HOUSING LINER .

-- Remove the headlamp power output module. Refer to RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 -A27- / -A31-, REMOVING AND INSTALLING .

Courtesy of AUDI

-- Remove the bolts -arrows-.

-- Remove the housing cover -1-.

-- Pry out the height adjusting screw -3- -arrow A-.

Courtesy of AUDI

The height adjustment -3- must be replaced.

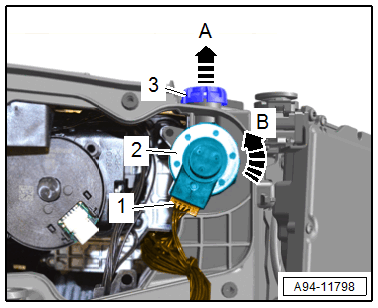

-- Disconnect the connector -1-.

-- Release the headlamp beam adjustment motor -2- from the left headlamp by turning clockwise and from the right headlamp by turning counter-clockwise -arrow B-.

-- Move the adjustment motor downward. The ball head on the adjusting axle will disengage upward from the ball head mounting when doing this.

-- Remove the adjustment motor.
