Left And Right Daytime Running Lamp And Position Lamp Led Module -L176- / -L177-, Removing And Installing, Matrix/Laser Led Headlamps: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition and all electrical equipment. Place the ignition key outside of the vehicle.

-- Turn the light switch off.

-- Do not operate the flashers.

-- Remove the front wheel housing liner front section. Refer to WHEEL HOUSING LINER .

-- Remove the headlamp power output module. Refer to RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 -A27- / -A31-, REMOVING AND INSTALLING .

Courtesy of AUDI

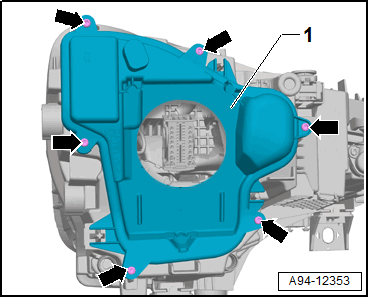

-- Remove the bolts -arrows-.

-- Remove the housing cover -1-.

CAUTION:

Electrostatic discharge may damage the electronic components.

- Discharge the static electricity: quickly touch the door striker.

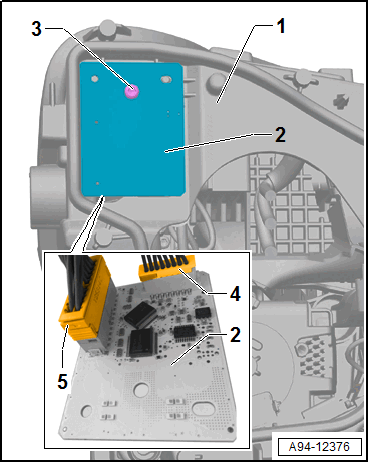

-- Remove the bolt -3-.

Courtesy of AUDI

-- Remove the LED module -2- from the headlamp housing -1-.

-- Press the release buttons and disconnect the connectors -4 and 5-. Do not contact any unattached electronic components.
