Sealing Frame, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING .

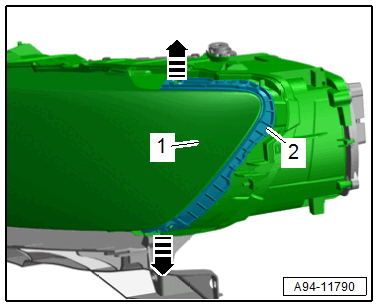

-- Detach the frame -2- from the top and bottom of the headlamp housing -1- -arrows- and remove it.
