Headlamp Fan, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition and all electrical equipment. Place the ignition key outside of the vehicle.
-- Turn the light switch off.
-- Do not operate the flashers.
-- Remove the front wheel housing liner front section. Refer to WHEEL HOUSING LINER .
-- Remove the headlamp power output module. Refer to RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 -A27- / -A31-, REMOVING AND INSTALLING .
-- Remove the bolts -arrows-.
-- Remove the housing cover -1-.

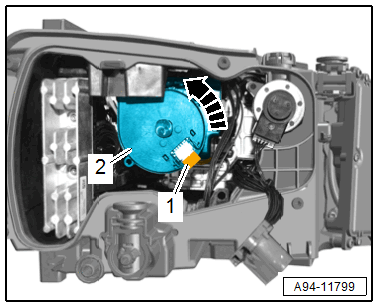

-- Press the release button and disconnect the connector -1-.
-- Release the fan -2- from the left headlamp by turning it clockwise on the right headlamp by turning it counter-clockwise -arrow-.
-- Remove the fan.
