Near Field Communication Control Module 2 -J1170-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console cover. Refer to OVERVIEW - CENTER CONSOLE .

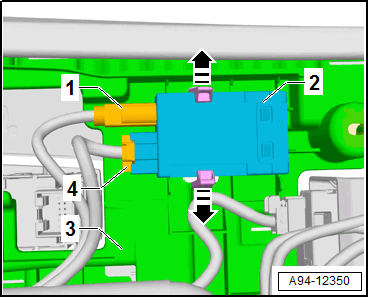

-- Release the connector -4- and antenna wire -1- and disconnect.
-- Release the catches -arrows-, and remove the near field communication control module 2 -2- from the mount -3-.
