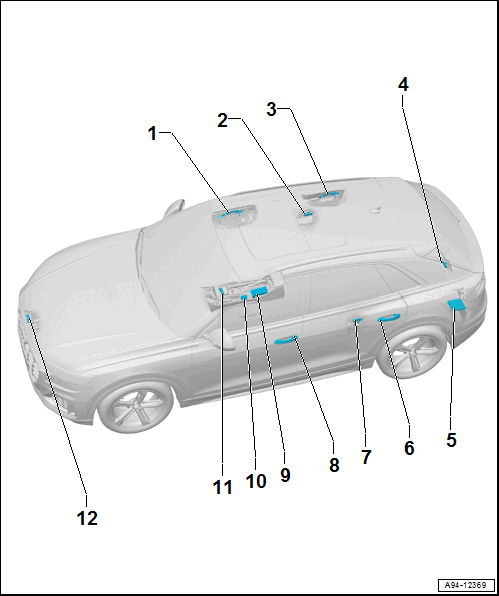

Component Location Overview - Keyless Access Authorization System
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Right Front Exterior Door Handle
- With Right Front Exterior Door Handle Touch Sensor -G606-
- Removing and installing. Refer to FRONT EXTERIOR DOOR HANDLE SWITCH, REMOVING AND INSTALLING .
- Right Access/Start Authorization Antenna -R201-
- Removing and installing. Refer to LEFT AND RIGHT ACCESS/START AUTHORIZATION ANTENNA -R200- / -R201-, REMOVING AND INSTALLING .
- Right Rear Exterior Door Handle
- with the Right Rear Exterior Door Handle Touch Sensor -G418-
- Removing and installing. Refer to REAR EXTERIOR DOOR HANDLE SWITCH, REMOVING AND INSTALLING .
- Access/Start System Antenna In Luggage Compartment -R137-
- Removing and installing. Refer to Access/Start System Antenna in Luggage Compartment -R137-, REMOVING AND INSTALLING .
- Comfort System Central Control Module -J393-
- Removing and Installing. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
- Left Rear Exterior Door Handle
- with the Left Rear Exterior Door Handle Touch Sensor -G417-
- Removing and installing. Refer to REAR EXTERIOR DOOR HANDLE SWITCH, REMOVING AND INSTALLING .
- Left Access/Start Authorization Antenna -R200-
- Removing and installing. Refer to LEFT AND RIGHT ACCESS/START AUTHORIZATION ANTENNA -R200- / -R201-, REMOVING AND INSTALLING .
- Left Front Exterior Door Handle
- With Left Front Exterior Door Handle Touch Sensor -G605-
- Removing and installing. Refer to FRONT EXTERIOR DOOR HANDLE SWITCH, REMOVING AND INSTALLING .
- Near Field Communication Antenna 2 -R351-
- Equipment versions with Audi phone box (9ZE)/Audi phone box light (9ZV): integrated in the Mobile Device Charger 1 -J1146-
- Removing and Installing, Equipment Versions Without Audi phone box/Audi phone box light (9ZX/9W0). Refer to Near Field Communication Antenna 2 -R351-, REMOVING AND INSTALLING .
- Removing and Installing, equipment versions with Audi phone box (9ZE)/Audi phone box light (9ZV). Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM
- Near Field Communication Control Module 2 -J1170-
- Removing and installing. Refer to Near Field Communication Control Module 2 -J1170-, REMOVING AND INSTALLING .
- Access/Start System Antenna 1 in Vehicle Interior -R138-
- Removing and installing. Refer to Access/Start System Antenna 1 in Vehicle Interior -R138-, REMOVING AND INSTALLING .
- Front Access/Start Authorization Antenna -R376-
- Removing and installing. Refer to Front Access/Start Authorization Antenna -R376-, REMOVING AND INSTALLING .

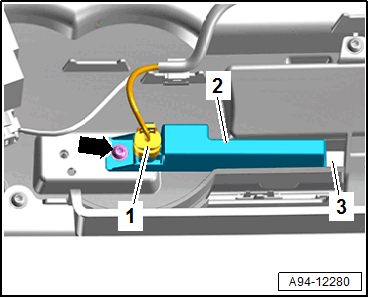

Front Access/Start Authorization AntennaR376 tightening specifications
-- Tighten the bolt -arrow- to 3 Nm.
