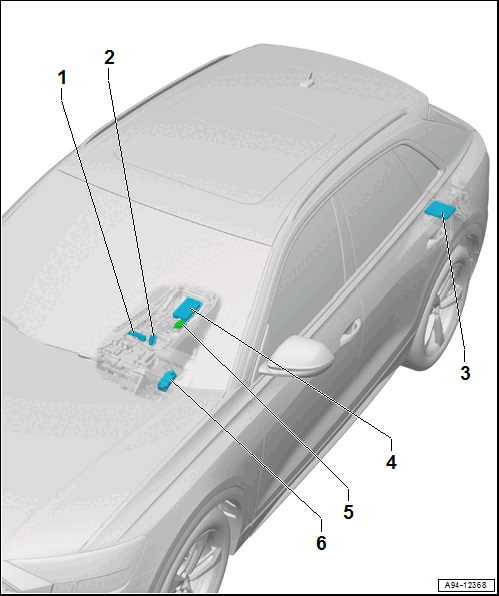

Component Location Overview - Access/Start Authorization System
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Access/Start System Antenna 1 in Vehicle Interior -R138-
- Removing and installing. Refer to Access/Start System Antenna 1 in Vehicle Interior -R138-, REMOVING AND INSTALLING .
- Access/Start Authorization Button -E408-
- Removing and installing. Refer to Access/Start Authorization Button -E408-, REMOVING AND INSTALLING .
- Comfort System Central Control Module -J393-
- Removing and Installing. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
- Near Field Communication Antenna 2 -R351-
- Equipment versions with Audi phone box (9ZE)/Audi phone box light (9ZV): integrated in the Mobile Device Charger 1 -J1146-
- Removing and Installing, Equipment Versions Without Audi phone box/Audi phone box light (9ZX/9W0). Refer to Near Field Communication Antenna 2 -R351-, REMOVING AND INSTALLING .
- Removing and Installing, equipment versions with Audi phone box (9ZE)/Audi phone box light (9ZV). Refer to COMPONENT LOCATION OVERVIEW - TELEPHONE SYSTEM
- Near Field Communication Control Module 2 -J1170-
- Removing and installing. Refer to Near Field Communication Control Module 2 -J1170-, REMOVING AND INSTALLING .
- Electronic Steering Column Lock Control Module -J764-
- Removing and installing. Refer to OVERVIEW - STEERING COLUMN .
